3D PRINT SERVICE

The print queue. Every part designed in-house.

Each part below is generated by a parametric Python script, validated for watertightness, structurally sanity-checked (FEA-lite), and engraved with a brand block + scannable QR before printing. 40 active designs across calibration, printer accessories, copy-stand parts, and panel-mount hardware.

P-001
P-001

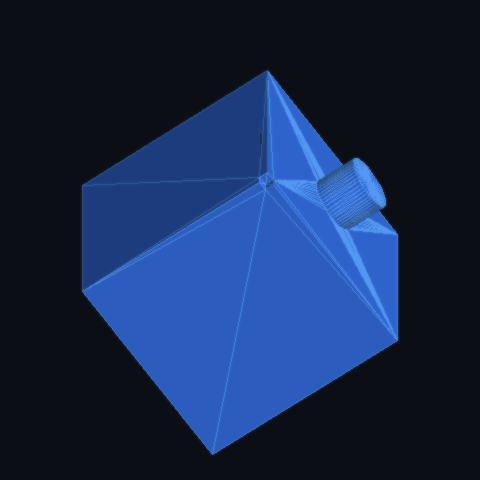

Tolerance Cube

gen_p001_tolerance.py — generate model P-001 "tolerance + ID cube". First post-success print. Combines: - 20mm reference cube (standard calibration target)

7 g 24 × 20 × 20 mm watertight
P-002
P-002

Cal2 Arm

gen_p002_cal2_arm.py — single arm of the CAL-2 assemblable corner ruler. CAL-2 design (per backlog): 4 identical L-shaped arms that snap into corners of any object. Each arm has:

4 g 50 × 10 × 34 mm watertight

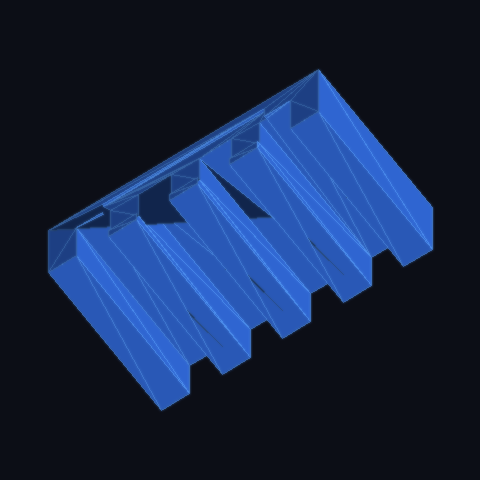

P-003
P-003

Cable Comb

gen_p003_cable_comb.py — 4-channel cable comb for desk cable management. Practical first non-calibration print. Holds up to 4 cables (USB, power, HDMI, etc.) in tidy parallel channels behind the iMac. Sticks to back of

15 g 50 × 30 × 12 mm watertight
P-004
P-004

Black Features

gen_p004_plaque.py — Nexum Calibration Plaque (multi-color limits test). Why this print exists: 1. Probe FDM limits — what's the minimum line/groove/overhang/sphere size

2 g 73 × 47 × 10 mm non-manifold
P-004
P-004

Black Swatch

gen_p004_plaque.py — Nexum Calibration Plaque (multi-color limits test). Why this print exists: 1. Probe FDM limits — what's the minimum line/groove/overhang/sphere size

0 g 10 × 10 × 1 mm watertight
P-004
P-004

Blue Swatch

gen_p004_plaque.py — Nexum Calibration Plaque (multi-color limits test). Why this print exists: 1. Probe FDM limits — what's the minimum line/groove/overhang/sphere size

0 g 10 × 10 × 1 mm watertight
P-004
P-004

Red Swatch

gen_p004_plaque.py — Nexum Calibration Plaque (multi-color limits test). Why this print exists: 1. Probe FDM limits — what's the minimum line/groove/overhang/sphere size

0 g 10 × 10 × 1 mm watertight
P-004
P-004

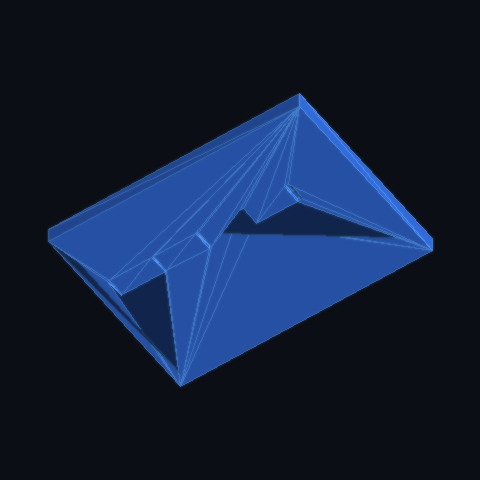

White Body

gen_p004_plaque.py — Nexum Calibration Plaque (multi-color limits test). Why this print exists: 1. Probe FDM limits — what's the minimum line/groove/overhang/sphere size

30 g 80 × 60 × 5 mm watertight
P-005
P-005

Arm

gen_p005_corner_gauge.py — Nexum 3D Corner Gauge. Assembleable orthogonal reference frame. After printing: Hub × 1 (slot 1, WHITE) — central cube with 3 perpendicular sockets

2 g 65 × 8 × 4 mm watertight
P-005
P-005

Block

gen_p005_corner_gauge.py — Nexum 3D Corner Gauge. Assembleable orthogonal reference frame. After printing: Hub × 1 (slot 1, WHITE) — central cube with 3 perpendicular sockets

18 g 50 × 30 × 11 mm watertight
P-005
P-005

Cap

gen_p005_corner_gauge.py — Nexum 3D Corner Gauge. Assembleable orthogonal reference frame. After printing: Hub × 1 (slot 1, WHITE) — central cube with 3 perpendicular sockets

1 g 10 × 10 × 6 mm watertight

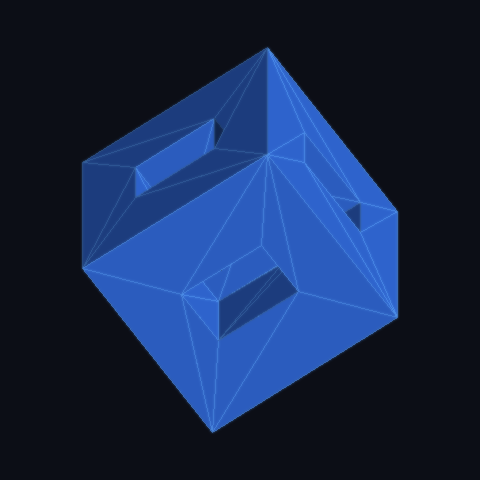

P-005
P-005

Hub

gen_p005_corner_gauge.py — Nexum 3D Corner Gauge. Assembleable orthogonal reference frame. After printing: Hub × 1 (slot 1, WHITE) — central cube with 3 perpendicular sockets

3 g 14 × 14 × 14 mm watertight
P-006
P-006

Ac Drain Vac Adapter

gen_p006_ac_drain_vac.py — AC condensate-drain unclog adapter. Single-piece dual-stepped cone: - AC drain side: stepped female cup that slips OVER 1/2", 3/4", or 1" PVC OD

62 g 65 × 65 × 106 mm non-manifold
P-006v2
P-006v2

Ac Drain Vac Male

gen_p006_ac_drain_vac.py — AC condensate-drain unclog adapter. Single-piece dual-stepped cone: - AC drain side: stepped female cup that slips OVER 1/2", 3/4", or 1" PVC OD

60 g 65 × 65 × 89 mm non-manifold

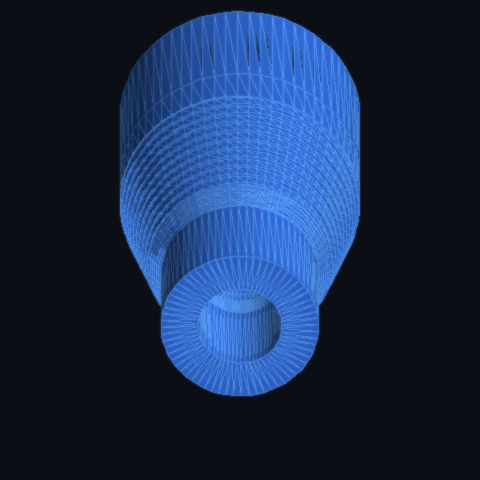

P-006v3
P-006v3

Ac Drain Smooth

gen_p006_ac_drain_vac.py — AC condensate-drain unclog adapter. Single-piece dual-stepped cone: - AC drain side: stepped female cup that slips OVER 1/2", 3/4", or 1" PVC OD

54 g 40 × 40 × 74 mm non-manifold
P-007
P-007

X Minus Blue

(parametric design — full source in print_queue/)

0 g 1 × 18 × 18 mm watertight
P-007
P-007

X Plus Red

(parametric design — full source in print_queue/)

0 g 1 × 18 × 18 mm watertight
P-007
P-007

Y Minus White

(parametric design — full source in print_queue/)

0 g 20 × 1 × 18 mm watertight
P-007
P-007

Y Plus White

(parametric design — full source in print_queue/)

0 g 20 × 1 × 18 mm watertight
P-007
P-007

Z Minus Black

(parametric design — full source in print_queue/)

0 g 20 × 20 × 1 mm watertight
P-007
P-007

Z Plus Black

(parametric design — full source in print_queue/)

0 g 20 × 20 × 1 mm watertight
P-008
P-008

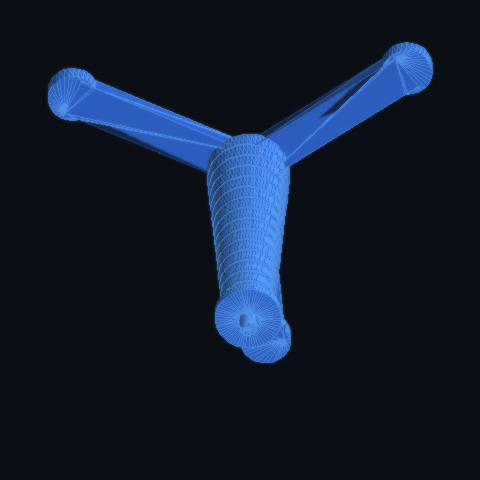

Canon Tripod

gen_p008_canon_tripod.py — small 3D-printed tripod for Canon EOS Rebel T7. Specs: - Height ~127mm (5 inches) per Ludwig

63 g 123 × 139 × 128 mm non-manifold
P-009
P-009

P2S Purge Basket

gen_p009_p2s_purge_basket.py — P2S filament purge waste basket. The Bambu P2S has a "poop chute" out the back — when AMS swaps colors or purges, filament drops out and lands on the floor. Community calls this

136 g 100 × 90 × 70 mm watertight

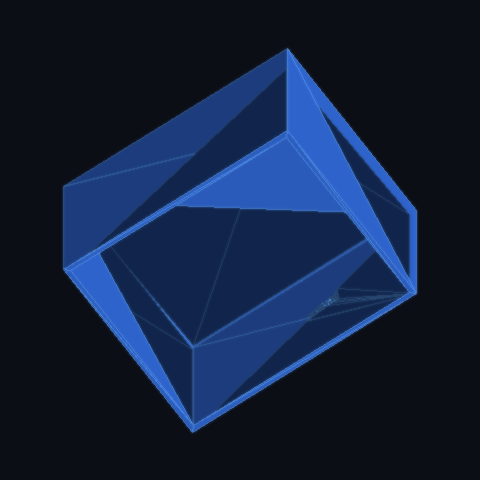

P-009v2
P-009v2

Purge Basket

gen_p009_p2s_purge_basket.py — P2S filament purge waste basket. The Bambu P2S has a "poop chute" out the back — when AMS swaps colors or purges, filament drops out and lands on the floor. Community calls this

55 g 85 × 70 × 55 mm non-manifold

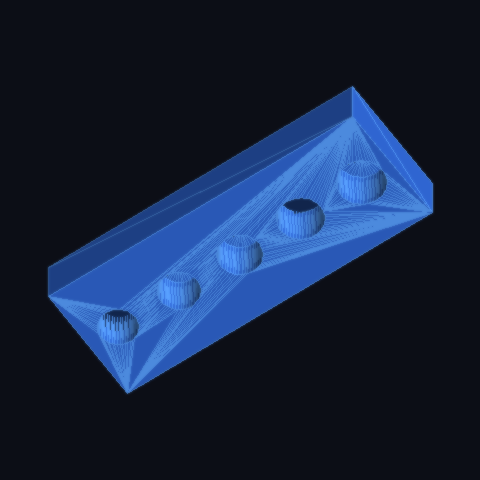

P-010
P-010

Tapo Fit Test

gen_p010_tapo_fit_test — tolerance test for the Tapo C110 base post. Tiny one-piece STL (~3min print, ~3g) with FIVE socket holes at different diameters: 9.0 / 9.5 / 10.0 / 10.5 / 11.0 mm. Drop the Tapo onto each.

30 g 80 × 30 × 12 mm watertight

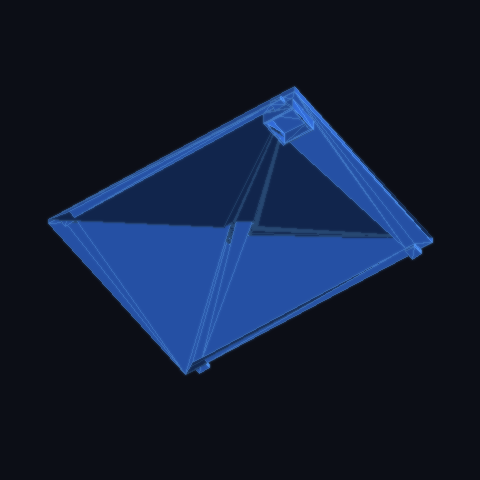

P-011
P-011

Baseboard

P-011 — Copy stand baseboard. Flat tray that holds the cal sheet flat on a desk + interlocks with the column (P-012) at the back-right corner.

377 g 250 × 205 × 18 mm non-manifold

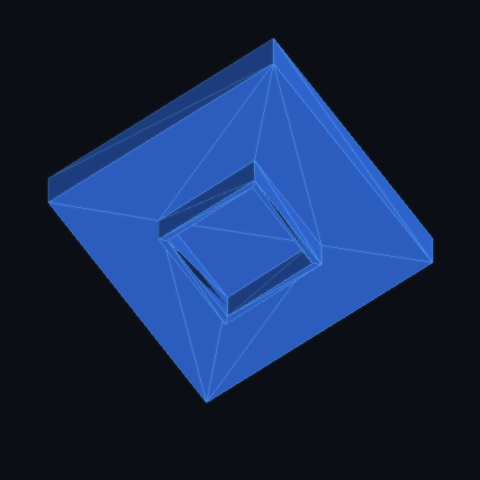

P-012
P-012

Column Foot

(parametric design — full source in print_queue/)

122 g 80 × 80 × 27 mm non-manifold

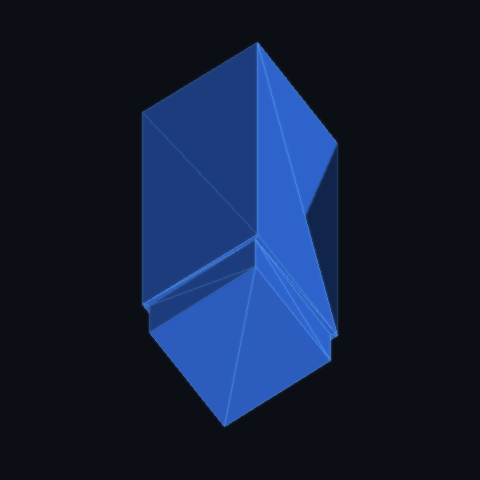

P-013
P-013

Column Segment

(parametric design — full source in print_queue/)

110 g 30 × 30 × 100 mm watertight
P-014
P-014

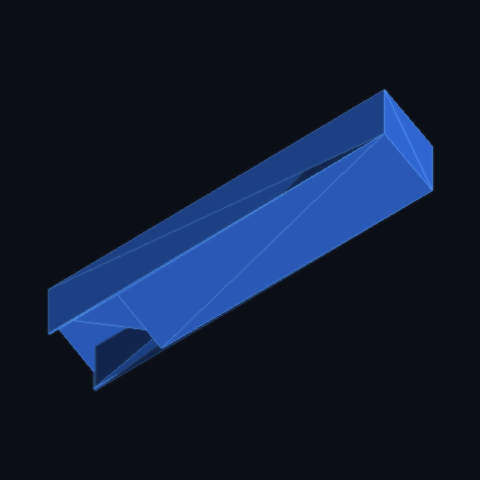

Camera Arm

(parametric design — full source in print_queue/)

155 g 150 × 30 × 30 mm non-manifold

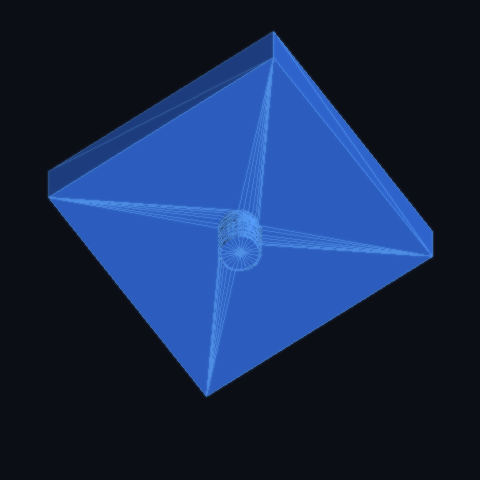

P-015
P-015

Mount Head

(parametric design — full source in print_queue/)

16 g 40 × 40 × 16 mm watertight

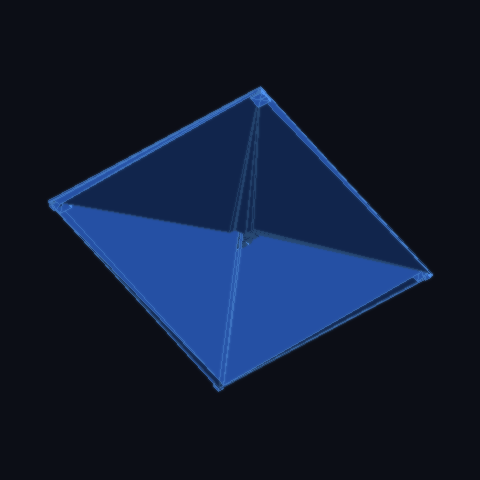

P-016
P-016

Sheet Holder

P-016 — Calibration sheet holder (clipboard). Flat 220×285×2mm plate with 4 corner clips that hold a letter-size sheet flat. Paper slides under each corner clip. Sheet stays perfectly flat for

137 g 218 × 250 × 6 mm non-manifold
P-017
P-017

Hex Fit Test

P-017 — ON-Q panel hex-hole fit-test. Small flat pin with FOUR hex pegs at different sizes (8/9/10/11mm across-flats). Drop into the panel's hex holes — find snug fit.

11 g 80 × 30 × 9 mm watertight

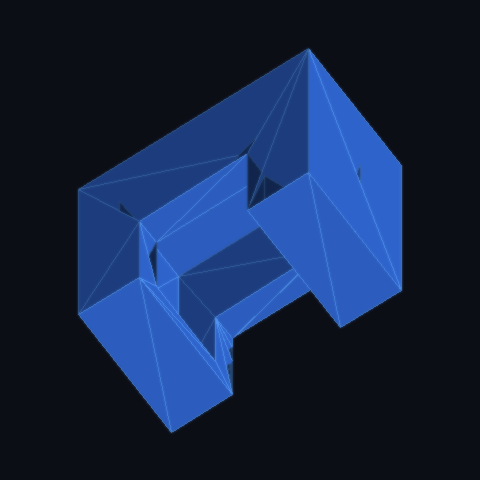

P-018
P-018

Filament Cutter Mount

P-018 — Filament-cutter mount for Bambu P2S. Holds the Bambu nipper-style cutter on the side of the printer (or AMS top) via 3M VHB tape. Cutter slides into a snug pocket; lip prevents fallout.

17 g 38 × 22 × 36 mm non-manifold

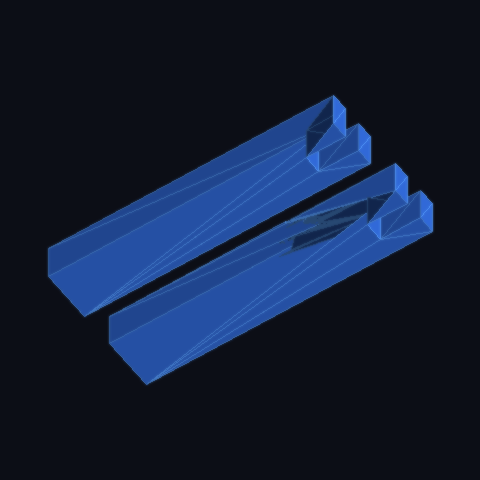

P-019
P-019

P2S Door Clip Pair

P-019 — P2S door clip pair. The Bambu P2S front door tends to swing closed during purge / scraper access. This part is a simple lever clip that wedges between the door and

15 g 65 × 32 × 8 mm watertight

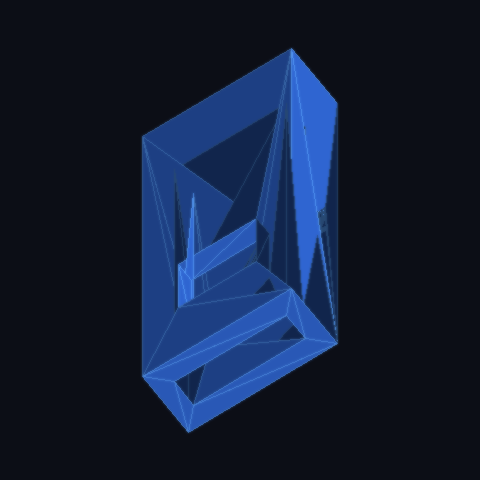

P-020
P-020

Scraper Holster

P-020 — Bambu scraper holster (wall-mount). Wall-mount holster for the Bambu metal scraper. Scraper slides in blade-up, handle exposed for grab. Mounted via 3M VHB on the back face, near the

29 g 32 × 14 × 80 mm non-manifold

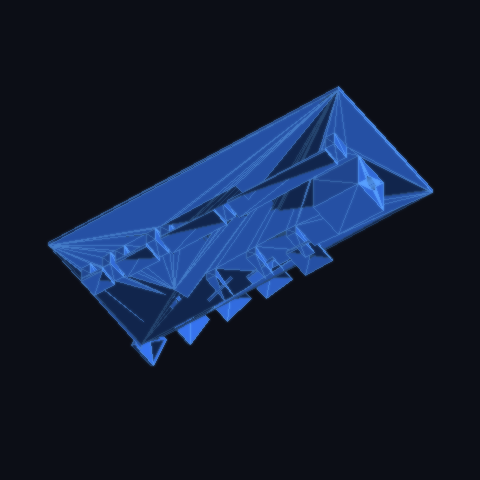

P-022
P-022

Support Test

P-022 — Support-strategy test article. Per `feedback_learn_supports.md`. Until now every print P-001..P-021 was designed support-free. Drones and aerodynamic parts need supports. This

31 g 130 × 62 × 18 mm non-manifold

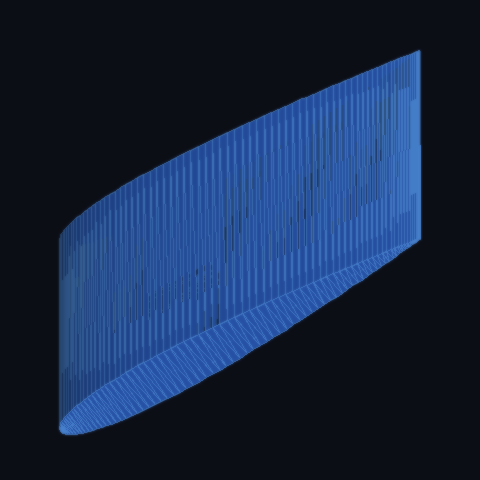

P-023
P-023

Naca Airfoil Flat

P-023 — NACA 0012 airfoil section. First print on the drone capability ladder. Per `project_drone_aerodynamic_path.md` stage-2 curriculum: curved surfaces with controlled support strategy, surface-finish learning, weight

15 g 60 × 7 × 40 mm watertight
P-023
P-023

Naca Airfoil Upright

P-023 — NACA 0012 airfoil section. First print on the drone capability ladder. Per `project_drone_aerodynamic_path.md` stage-2 curriculum: curved surfaces with controlled support strategy, surface-finish learning, weight

15 g 40 × 7 × 60 mm watertight

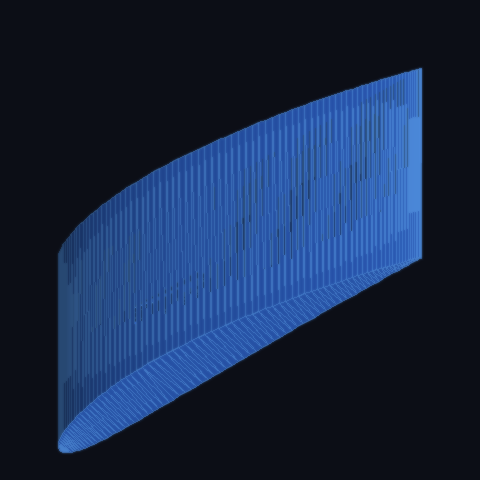

P-024
P-024

Naca4412 Flat

P-024 — NACA 4412 cambered airfoil section. Stage-2 drone ladder, step 2. Adds camber (asymmetric profile) on top of P-023's symmetric NACA 0012. Real wing sections use camber to generate lift; this teaches the printer

15 g 60 × 8 × 40 mm watertight
P-024
P-024

Naca4412 Upright

P-024 — NACA 4412 cambered airfoil section. Stage-2 drone ladder, step 2. Adds camber (asymmetric profile) on top of P-023's symmetric NACA 0012. Real wing sections use camber to generate lift; this teaches the printer

15 g 40 × 8 × 60 mm watertight
